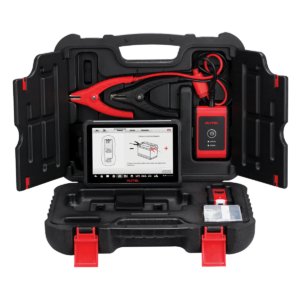

Autel MaxiBAS BT609 Battery Tester

Name: Autel MaxiBAS BT609 Battery Tester
Brand: Autel
SKU: BT609
Availability: InStock

Autel MaxiBAS BT609 Battery Tester

Original price was: $815.00.Current price is: $794.95.

Call for special pricing.
The Autel MaxiBAS BT609 wireless battery tester and electrical system analysis tablet is the perfect tool for technicians who want to get the most accurate information about a battery’s health. Using Adaptive Conductance, the MaxiBAS BT609 can examine a battery’s cold cranking ability and reserve capacity, giving you a clear picture of its true health. The 7-inch Android touchscreen tablet makes it easy to view battery information and perform advanced diagnostics, and with features like AutoVIN and the ability to print or share reports via Wi-Fi, the BT609 is a must-have for any workshop. Comes with one year of free software and a limited hardware warranty.

View Coverage Guide

Original price was: $815.00.Current price is: $794.95.

Need Financing

Categories: Autel, Battery Tools, Shop By BrandTags: Battery Service, Diagnostic TabletsSKU: BT609

SALE

Authorized Autel Dealer

Key Features of Autel MaxiBAS BT609

Seven-inch Android-based Wireless Battery Tester and Electrical System Analysis Tablet
Uses Adaptive Conductance to Produce a More Accurate Exam of the Battery’s Status
Support In-vehicle and Out-of-vehicle Testing of Passenger Vehicle Batteries
Test 6- and 12-volt Batteries: 100 – 3000 CCA
Test 12- and 24-volt Cranking/Charging Systems
Test Flooded, AGM, AGM Spiral, EFB and GEL Batteries
Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
Features VINscan for Rapid Identification of Vehicle and Battery Specifications
All Systems Code Reader and Service Menu
One Year of Free Software Updates and Limited Hardware Warranty

Video Player

Media error: Format(s) not supported or source(s) not found

Download File: https://www.triad-ds.com/wp-content/uploads/2022/08/Autel-BT609-Battery-Analyzer-Diagnostics-Tablet.mp4?_=1

00:00

Use Up/Down Arrow keys to increase or decrease volume.

MaxiTPMS ITS600 Programming Tool

SKU: ITS600

SALE

View Cart

Add to cart / Details Quick View

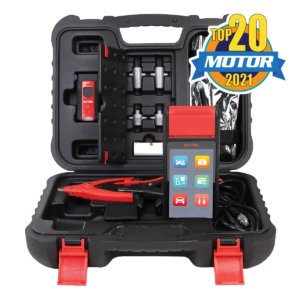

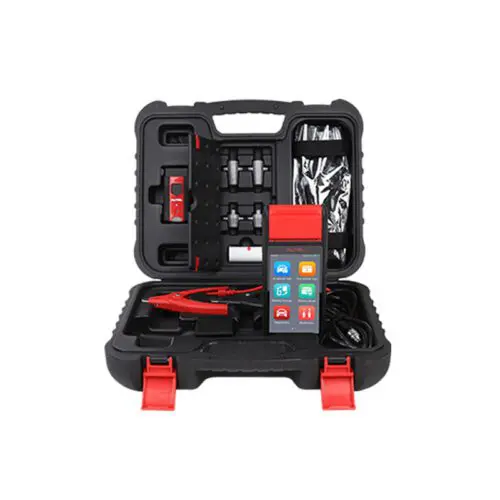

Autel MaxiBAS BT608 Battery Tester

SKU: BT608

SALE

View Cart

Add to cart / Details Quick View

MaxiCheck MX900 Diagnostic & Service Tablet

SKU: MX900

View Cart

Add to cart / Details Quick View

Autel TS900 Diagnostic & Service Tablet w/ TPMS

SKU: TS900

$795.00

SALE

View Cart

Add to cart / Details Quick View

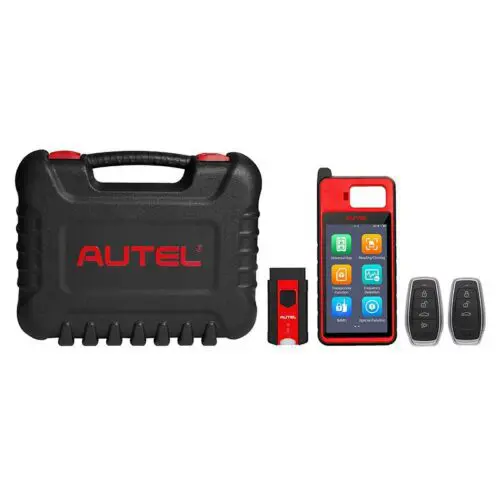

MaxiIM KM100 Key Programmer

SKU: KM100

partner with a company that cares about your success!

triad advantages

Triad’s Single Source Solution complete with tailored training and ongoing support will ensure more uptime on your vehicles and equipment.

technician
training

Training on diagnostic software is expensive and often unavailable on OEM software. Triad’s team of ASE Certified technical service training managers provide in-depth training on all of our tools.

Learn more

technician
repair hotline

Regardless of the component or issue technicians are diagnosing or repairing, Triad’s ASE-certified technicians are standing by with the training to work them through the repair process.

Learn more

hot swap
services

Don’t get stuck without your money-maker. Triad’s Single Source Solution includes Hot Swap Services to keep your repair team up and running while your machine is being repaired.

Learn more

Operating System	Android 9.0
Memory	2GB RAM & 64GB On-board Memory
Display	7.0 inch TFT-LCD with 1280 x 800 resolution & capacitive touch screen
Connectivity	Wi-Fi (IEEE 802.11 a/b/g/n/ac 1×1) BT 5.0+EDR+BLE USB 2.0 (1 USB HOST + 1 USB OTG) Micro SD Card (Support up to 128GB)
Camera	8 Megapixel
Sensor	Ambient Light Sensor (ALS)
Audio	Microphone
Input/Output	Loudspeaker
Power and Battery	5800 mAh 3.85 V lithium-polymer battery Charging via 5 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	5V / 2A Adapter
Operating Temperature	0 to 50° C (32 to 122° F)
Storage Temperature	-10 to 60° C (14 to 140° F)
Dimensions(W x H x D)	197 mm (7.75″) x 135 mm (5.31″) x 14 mm (0.55″)
Weight	445 g (0.98 lb.)

	MaxiBAS BT508	MaxiBAS BT608	MaxiBAS BT609

HARDWARE
Screen	—	5.5-Inch Touchscreen 720 x 1280 DPI / LED Color Screen	7-Inch Touchscreen 1280 x 800 DPI / LED Color Screen
Battery	—	3,000 mAh 6H	6,000 mAh 6H
Processor	CORTEX-M4	1.5 GHz CORTEX-A35 QUAD-CORE	1.5 GHz CORTEX-A35 QUAD-CORE
Memory	—	32GB SSD / 2GB RAM	64GB SSD / 2GB RAM
Camera	—	8.0MP	8.0MP
SOFTWARE
Operating System	—	ANDROID 9.0	ANDROID 9.0
FEATURES
CCA Range	100-2000 CCA	100-3000 CCA	100-3000 CCA
Battery Type	Flooded, AGM, AGM Spiral, EFB, GEL	Flooded, AGM, AGM Spiral, EFB, GEL	Flooded, AGM, AGM Spiral, EFB, GEL
Battery Ratings	CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB	CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB	CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
Battery Voltage	6V, 12V	6V, 12V	6V, 12V
Electrical System	12V, 24V	12V, 24V	12V, 24V
Voltage Range	1.5-36V	1.5-36V	1.5-36V
Temperature Compensation	—	Included	Included
Battery Registration	53 Vehicle Makes	53 Vehicle Makes	53 Vehicle Makes
Electrical Reset	Included	Included	Included
System Detection	AUTOVIN	AUTOVIN, VINSCAN, PLATE SCAN	AUTOVIN, VINSCAN, PLATE SCAN
Battery Location Diagrams	Included	Included	Included
Battery Health Report	Included	Included	Included
Built-In Printer	—	Included	—
Email Report	Included	Included	Included
Cloud-Base Service	Included	Included	Included
Multimeter	—	Optional	Optional
Amp Clamp	—	Optional	Optional
DIAGNOSTICS
All System with Autoscan	One Vehicle Brand Only	Included	Included
All Maintenance Resets	—	—	Included
Diagnostic Software Update	Charge for additional vehicle brands & annual update	No Annual Update Fee	Annual Update Fee
