TS508WF TPMS Tool

Name: TS508WF TPMS Tool
Brand: Autel
SKU: 700010
Availability: InStock

TS508WF TPMS Tool

$299.95

The MaxiTPMS TS508WF is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. The Update by Wi-Fi function helps the update experience more convenient. It can be your right choice to experience AUTEL TPMS lines.

TS508WF is designed to activate all the sensors and read the sensor ID, pressure, temperature and battery condition.

$299.95

Need Financing

Categories: Autel, Shop By Brand, TPMSTags: TPMS ProgrammersSKU: 700010

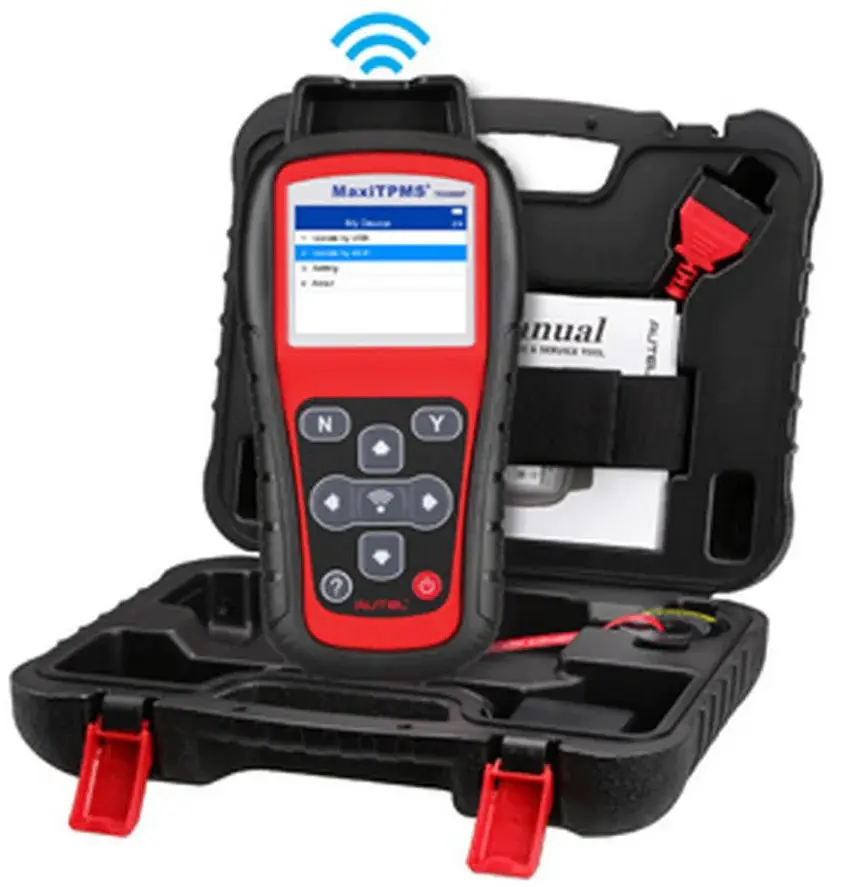

TS508WF Tool Packaged in Blow Mold Case copy

Authorized Autel Dealer

Specifications

Display	TFT color display (320 x 240 dpi)
Power	3.7 V Li-polymer battery; 3200 mAh
Operating Temp	0°C to 50°C (32°F to 122°F)
Storage Temp	20°C to 70°C (-4°F to 158°F)
Dimensions	215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
Weight	0.39 kg (0.86 lb.)
Connectivity	Mini USB 2.0 x 1
Warranty	1 year
Software Update	Free

Comparison

Comparison	TS608	MS906 TS	TS601	TS508	TS501	TS408	TS401	TPMS PAD
TPMS Function
Quick Mode & Advance Mode				•
Activate TPMS Sensors	•	•	•	•	•	•	•	•
Read Sensor Data	•	•	•	•	•	•	•	•
TPMS Diagnose, One Step for Complete TPMS Health Check	•	•	•	•	•
Read/Clear TPMS DTCs; On-Screen DTC Description	•	•	•	•	•
Scan TPMS Sensor ID and Copy ID into MX-Sensor	•	•	•	•	•	•	•	•
Manual Input OE ID into MX-Sensor	•	•	•	•	•	•	•	•
Program MX-Sensor by Auto Creating Sensor ID	•	•	•	•	•	•	•	•
Read Sensor ID by OBD and Copy ID into MX-Sensor	•	•	•	•	•
Relearn by OBD Function	•	•	•	•	•
Relearn Procedure Guide on Tool	•	•	•	•	•	•	•
Check Key FOB	•		•	•	•	•	•
Read TPMS Live Data	•	•	•
Tire Type/Pressure Selection	•	•	•	•
Other TPMS Special Functions	•	•	•
TPMS Toolkit (Other Functions)	•
Diagnostic Function
Basic OBDII Code Reader	•	•	•
Read/Clear Codes for All Electronic Systems	•	•
Support All 10 Test Modes of the Latest J1979 OBDII Test Specs	•	•	•
Enhanced OBDII Mode 6	•	•	•
Display Live Data in Text, Graph & Analog for Easy Data Review	•	•
Relearn Parking Brake Pad After Replacement	•	•
Reset Steering Angle Sensor (SAS)	•	•
Reset Service Mileage and Service Intervals (SAS)	•	•
Forced Regeneration and Adjusting Injectors	•	•
Support Battery Registration and Reset	•	•
Support IMMO Functions	•	•
Complete Diagnostic Function		•
Tool Features
Built-In Rechargeable li-ion Battery	•	•	•	•	•	•	•
Strong Housing with Protective Rubber Boot	•	•	•	•	•	•	•
Print TPMS Sensor Data via PC	•	•	•	•	•	•	•	•
Internet Updatable	WIFI	WIFI	SD Card	USB	SD Card	USB	USB	USB
Multilingual Support	•	•	•	•	•	•	•	•
Historical Test Records	•	•	•	•	•	•	•
Software Update	1 Year Free	1 Year Free	Free	Free	Free	Free	Free	Free
Limited One Year Warranty	•	•	•	•	•	•	•	•
